Mini PC 12th Gen i3 i5 i7 4*HDMI 8USB 6COM

CPU Alder Lake-U i3 i5 i7
SO-DIMM*2, up to 64GB
6*COM+8*USB+2*LAN
4xHDMI2.0

EMAIL

Features:

CPU: Intel® Alder Lake-U Series Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display via: Intel® Integrated Graphics via 4xHDMI2.0

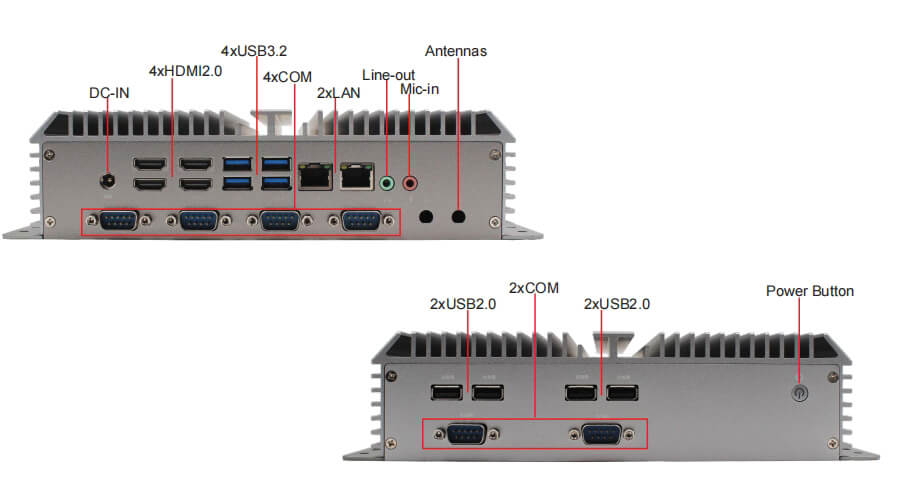

I/O Ports: 4xUSB3.2, 4xUSB2.0. 2xLAN, 6xCOM
Ethernet: 10/100/1000/2500Mbps
Storage: SATA3.0, M.2 for NVMe SSD
Power: 19V DC-in


Specification  FI07-AL10

CPUCPU/Socketlntel J6412/ i3-1215U/i5-1235U/i7-1255U optional
MemoryTechnologyDDR4  SODIMM x2 up to 64GB For core i CPU
Max. Capacity64GB
DisplayGPU

Intel Iris® Xe Graphics eligible/UHD Graphics depends on CPU

4*HDMI 2.0

StorageSATA

1 x  1xM.2 for 280 SSD

1 x SATA

Expansion slot

1x M.2 for WiFi, support Intel® Integrated Connectivity (CNVi)

EthernetController

1x Intel® i225/i226 Data rate per port 2.5GbE

1x Intel ®  i229    Data rate per port 1.0GbE

Connector2* RJ45 LAN port
AudioRealtek HD
1xLine out, 1xMic in
Watchdog TimerYes
IOUSB3.2/2.04xUSB3.2+4xUSB2.0
LAN2x RJ45 Port, Ethernet LAN
COM6xCOM: 6*RS232(default) or 5*RS232+1*RS485(COM1)
Display4 xHDMI 2.0
Audio1 x Line out, 1xMic in
PowerPower TypeDC
Input Voltage19V

Power Adaptor

AC to DC Adapter

Environment

Operation Temp.With air flow -10 ~ 60° C
Storage Temp. -20 ~ 70° C
Relative Humidity95% @ 40° C (non-condensing)
Anti-vibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Anti-shockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
MechanicalMountingDesktop / wall mounting

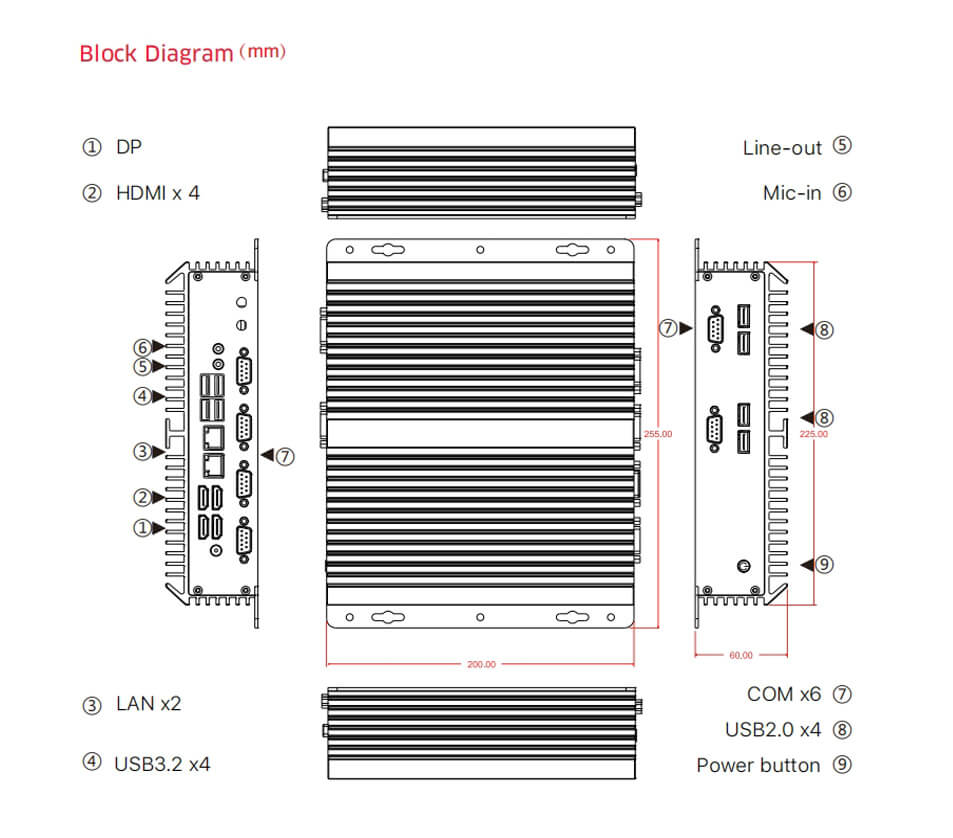

Dimension (mm)255x200x60mm
ConstructionAluminum housing
OS
Windows 10/11 64bit , Linux 64bit
