Mini PC J6412 4Ethernet LAN port

Mini PC J6412 CPU
SO-DIMM*2, up to 32GB

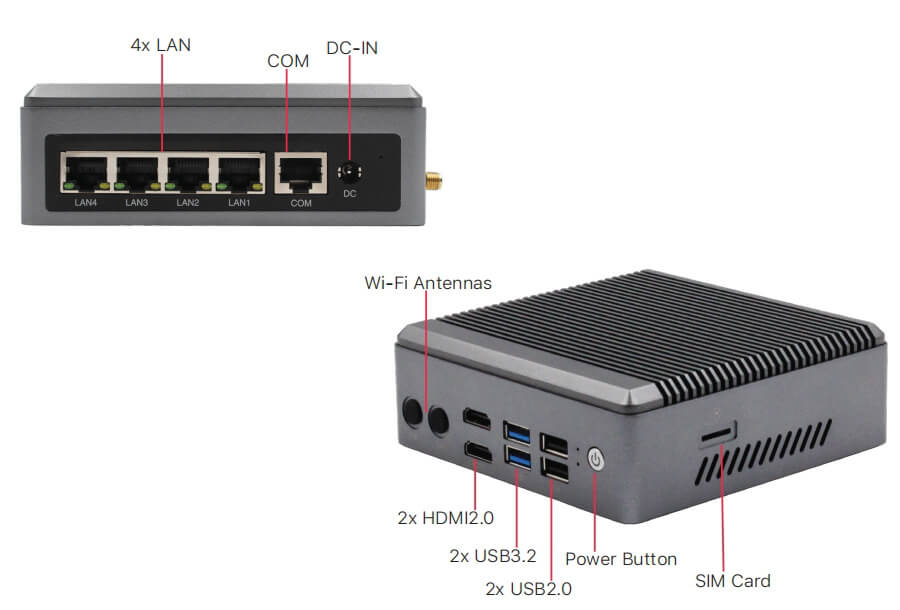

2xHDMI+1xCOM+1xSIM
4*Ethernet LAN RJ45

Features：

1.CPU: Intel® Elkhart Lake J6412 Processor
2.Memory: Single Channel SO-DIMM DDR4 up to 32GB
3.Display: Intel® Integrated Graphics display via 2xHDMI2.0
4.I/O Ports: 4xLAN, 2xUSB3.2, 2xUSB2.0, 1xCOM, 1xSIM
5.Ethernet: 10/100/1000/2500Mbps, Intel® i225/i226
6.Storage: 1x M.2 2242/2280 SSD, 2.5-inch SATA optional
7.Power: 12V DC-in

Specification FI0M-NX6412
CPU	CPU/Socket	lntel J6412
Memory	Technology	DDR4 SODIMM x1 up to 32GB
Memory	Max. Capacity	32GB
Storage	SATA	1 x 1xM.2 for 2242/2280 SSD (SATA ONLY) or 4G 1 x SATAHDD/SSD 1x 2.5-inch Optional
Expansion slot		1xM.2 for WiFi 1x SIM card slot
Ethernet	Controller	Intel® Intel i225/i226, speed 10/100/1000/2500 Mbps
Ethernet	Connector	4* RJ45 LAN port
Watchdog Timer	Yes
IO	USB3.2/2.0	2USB3.2+2USB2.0
	LAN	4x RJ45 Port, Ethernet LAN
	COM	1xRJ45 Console (RS232)
	Display	2xHDMI
	SIM	1 xSIM card slot
Power	Power Type	DC
	Input Voltage	12V
	Power Adaptor	AC to DC, DC12V/5A,
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Anti-vibration	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Anti-shock	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Mechanical	Mounting	Desktop / wall mounting

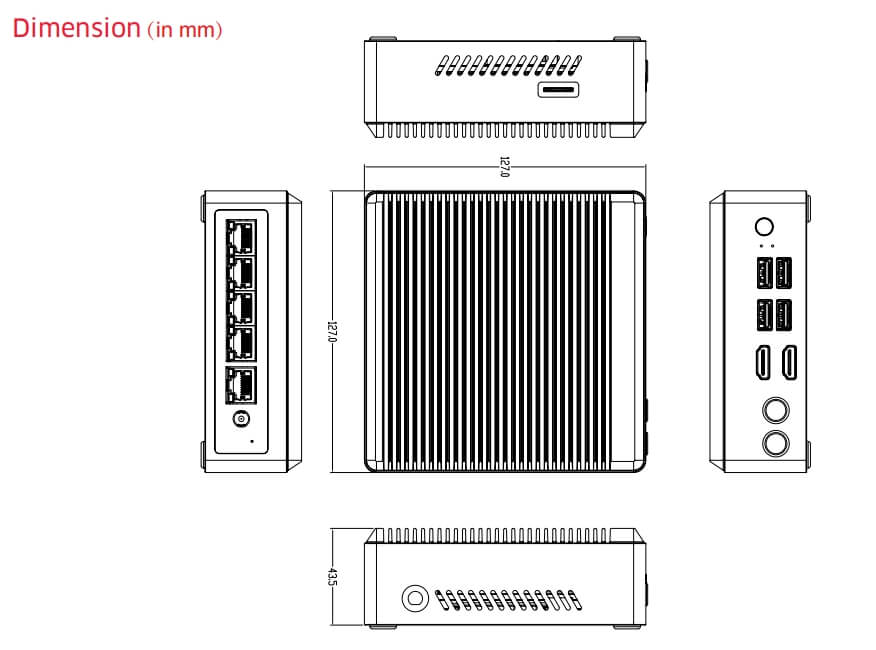

	Dimension (mm)	127x127x43.5mm
	Construction	Aluminum housing
OS		Windows 10/11 64bit , Linux 64bit
