Mini PC 7/8/10/11th Core i5/i7 6USB6COM

7/8/10/11th Gen Core i5 i7 CPU
SO-DIMM*2, up to 32GB
6*COM+2*Ethernet LAN 6*USB
9-36V wide power DC

EMAIL

Features:

1. Optional CPU   7/8/10/11th U Intel®  Core i5/i7;

2. Memory:SO-DIMM*2, up to 32GB

3.  6*DB9-4 support RS485/422,

4. 2*Ethernet LAN port in RJ45 6*USB, 14*bit GPIO,

5. Fanless / Compact design

6. 9-36V Wide Power


Specification VST-IBC1

CPUCPU/Socketlntel CPU 7/ 8/10/11th Gen Core i5 /i7
MemoryTechnologyDDR4 SODIMM x2 up to 32GB
Max. Capacity32GB
StorageSATA

1 x  MSATA

1 x M.2 2280 NVME

1 x HDD/SSD

Expansion slotMiniPCIe

Mini PCIE Full size  optional for  3G/4G/5G with SIM slot on board

Mini PCIe Half-size optional for WiFi & BT

Expansion IOOptional expanding LPC, USB, PCIE
EthernetControllerIntel® i211/ i210
Connector2* RJ45 LAN port
AudioAudio Interface1x earphone , 1* Mic
Watchdog TimerYes
IOUSB3.0/2.04*USB3.0+2*USB2.0
GPIO1* 14 bit GPIO (7*in/7*out)
COM6x DB wherein 4* support RS-232/422/485
PowerPower TypeDC
Input Voltage9-36V

Power Adaptor

AC to DC, DC12V/5A,

Environment

Operation Temp.With air flow -10 ~ 60° C
Storage Temp. -20 ~ 70° C
Relative Humidity95% @ 40° C (non-condensing)
Anti-vibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Anti-shockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
MechanicalMountingDesktop / wall mounting

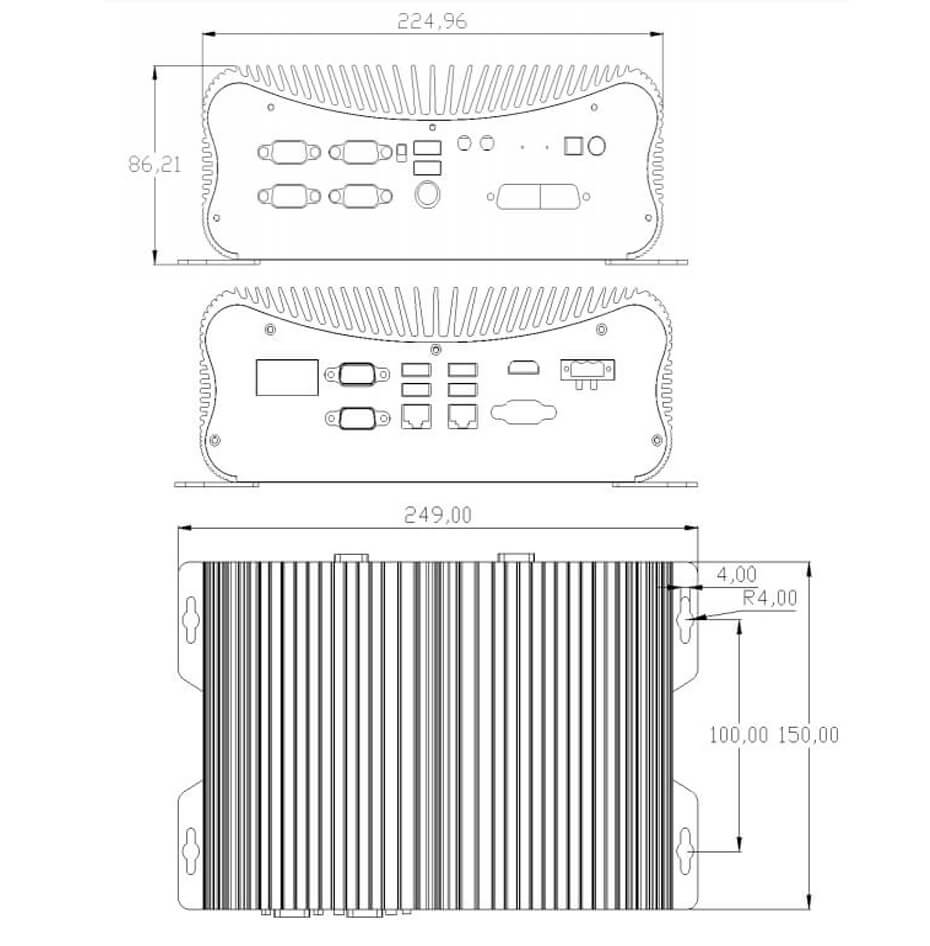

Dimension (mm)249x150x86mm
ConstructionAluminum housing
OS
Windows 10 /Windows 11/ Ubuntu,CentOS





Founded in 2016, Vstrong Technology Co.,Ltd is headquartered in Shenzhen, China. Our team of experienced and trusted experts is dedicated to continuously providing industrial computer systems including Industrial Motherboard, Industrial Panel PC, Fanless Box PC, Industrial Monitor, Rugged Tablets, etc. Meanwhile we provide flexible customization tailored to various applications.

From industrial automation, warehouse and logistics, smart traffic, construction, manufacturing, retail and other industries that require durability and ease of use, you will find our products and services working hard for clients who expect only the best. We always listen to customer needs and act on them.You can reply on Vstrong Technology to deliver and work with.

Main Advantages:

Robust and Reliable Products: Our industrial PCs are built to last in demanding environments. You can rely on them for uninterrupted performance, ensuring your operations run smoothly without costly downtime.

Flexible Customization: Tailored solutions to fit your exact needs. With flexible customization options, you get the precise hardware and features required for your unique applications, maximizing efficiency.

Cost-Effective Solutions: We offer budget-friendly solutions without compromising on quality. Our cost-effective industrial PCs deliver exceptional value, helping you save on upfront costs and long-term operational expenses.

Quality Assurance: Our commitment to quality is unwavering. We adhere to stringent quality control processes to guarantee that every industrial PC we provide meets the highest industry standards, ensuring your investment is worthwhile.

Longevity and Lifecycle Support: We understand the importance of long-term reliability. Our industrial PCs come with extended product lifecycles and comprehensive support, safeguarding your investment and minimizing disruptions over the years.
