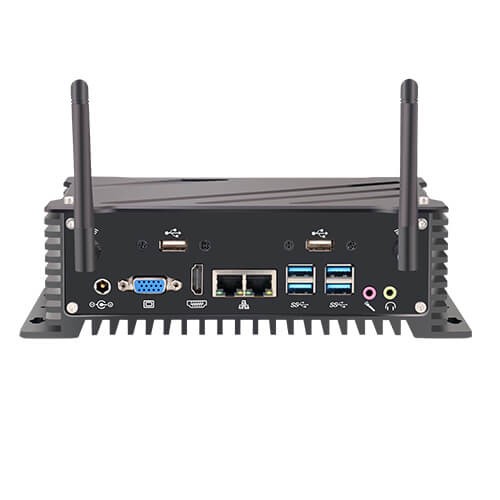

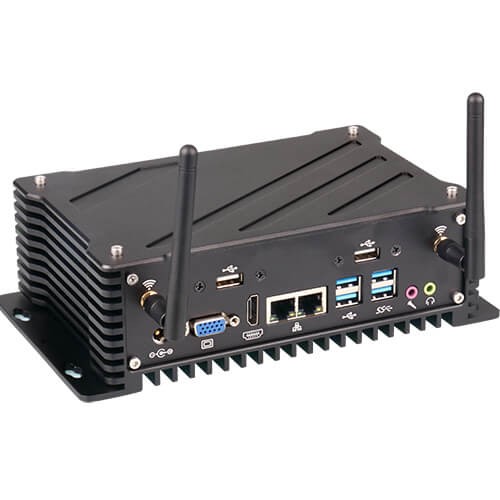

Mini PC J1900 6COM 6USB 2LAN

Celeron J1900
DDR3 8GB
6*COM+6*USB+2*LAN
Compact design

EMAIL

Key Features:

1. Celeron J1900

2. DDR3L SO-DIMM x1, up to 8GB

3.  6*DB9- 2  support RS485/422,

4. 2*Ethernet LAN port in RJ45 6*USB, 10*bit GPIO,

5. Fanless / Compact design

6. 12V DC


Specification  VST-LPC2

CPUCPU/Socketlntel Celeron J1900
MemoryTechnologyDDR3L  SODIMM x1 up to 8GB
Max. Capacity8GB
StorageSATA

1 x  MSATA

1 x HDD/SSD

Expansion slotMiniPCIe

Mini PCIE Full size  optional for  3G/4G/5G with SIM slot on board

Mini PCIe Half-size optional for WiFi & BT

EthernetControllerIntel® i211/ i210
Connector2* RJ45 LAN port
AudioAudio Interface1x line out , 1* Mic
Watchdog TimerYes
IOUSB3.0/2.01*USB3.0+5*USB2.0
LAN2x RJ45 Port, Ethernet LAN

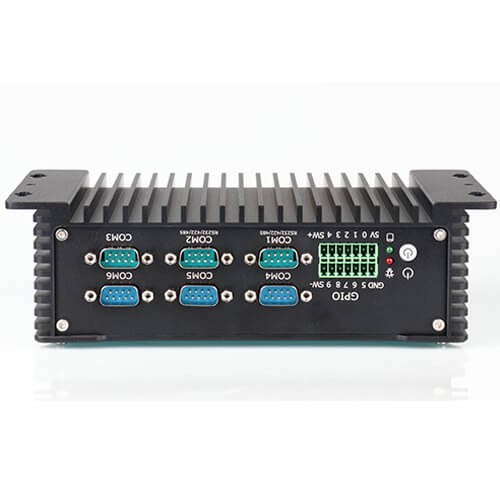

COM6x DB wherein 2* support RS-232/422/485
Display1xHDMI, 1xVGA
GPIO10 bit GPIO
Buttons1 x Power Button
PowerPower TypeDC
Input Voltage12V

Power Adaptor

AC to DC, DC12V/5A,

Environment

Operation Temp.With air flow -10 ~ 60° C
Storage Temp. -20 ~ 70° C
Relative Humidity95% @ 40° C (non-condensing)
Anti-vibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Anti-shockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
MechanicalMountingDesktop / wall mounting

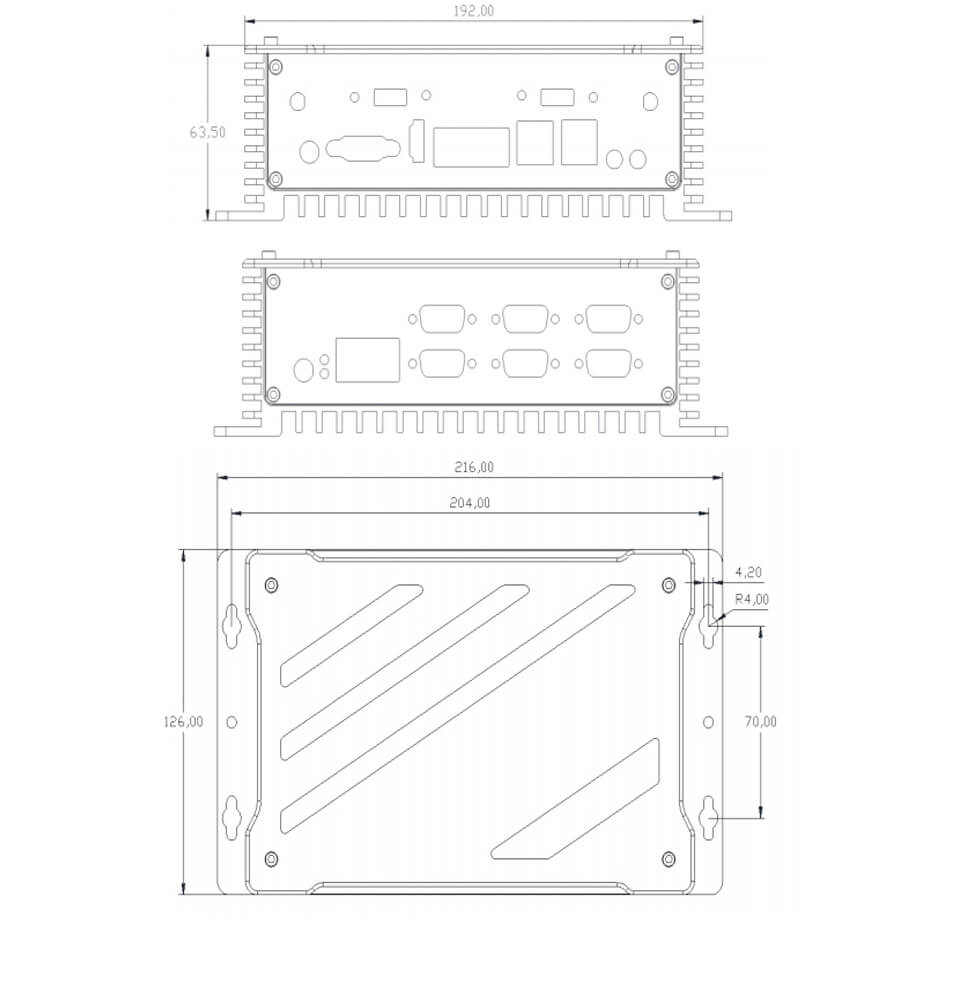

Dimension (mm)216x126x63.5mm
ConstructionAluminum housing
OS
Windows 7/8/10 , Linux





Founded in 2016, Vstrong Technology Co.,Ltd is headquartered in Shenzhen, China. Our team of experienced and trusted experts is dedicated to continuously providing industrial computer systems including Industrial Motherboard, Industrial Panel PC, Fanless Box PC, Industrial Monitor, Rugged Tablets, etc. Meanwhile we provide flexible customization tailored to various applications.

From industrial automation, warehouse and logistics, smart traffic, construction, manufacturing, retail and other industries that require durability and ease of use, you will find our products and services working hard for clients who expect only the best. We always listen to customer needs and act on them.You can reply on Vstrong Technology to deliver and work with.

Main Advantages:

Robust and Reliable Products: Our industrial PCs are built to last in demanding environments. You can rely on them for uninterrupted performance, ensuring your operations run smoothly without costly downtime.

Flexible Customization: Tailored solutions to fit your exact needs. With flexible customization options, you get the precise hardware and features required for your unique applications, maximizing efficiency.

Cost-Effective Solutions: We offer budget-friendly solutions without compromising on quality. Our cost-effective industrial PCs deliver exceptional value, helping you save on upfront costs and long-term operational expenses.

Quality Assurance: Our commitment to quality is unwavering. We adhere to stringent quality control processes to guarantee that every industrial PC we provide meets the highest industry standards, ensuring your investment is worthwhile.

Longevity and Lifecycle Support: We understand the importance of long-term reliability. Our industrial PCs come with extended product lifecycles and comprehensive support, safeguarding your investment and minimizing disruptions over the years.
