Mini PC i5 i7 /4LAN 12COM

7/8/10/11th Gen Core i5 i7 CPU
SO-DIMM*2, up to 32GB
12*COM+4*Ethernet LAN
9-36V wide power DC

Key Features：

1. Optional CPU 7/8/10/11th U Intel® Core i5/i7;

2. Memory:SO-DIMM*2, up to 32GB

3. 12*COM wherein 6*DB9-4 support RS485/422, 6* terminal block

4. 4*Ethernet LAN port in RJ45, Intel® i211/210

5. Fanless / Compact design

6. 9-36V Wide Power

Specification VST-IBC2
CPU	CPU/Socket	lntel CPU 7/ 8/10/ 11th Gen Core i5 /i7
Memory	Technology	DDR4 SODIMM x2 up to 32GB
Memory	Max. Capacity	32GB
Storage	SATA	1 x SATA 1 x M.2 2280 NVME 1 x HDD/SSD
Expansion slot	MiniPCIe	M.2 3042/3052 optional for 3G/4G/5G with SIM slot on board M.2 2230 WiFi & BT
Expansion slot		2 more Ethernet LAN optional for expansion
Ethernet	Controller	Intel® i211/ i210
Ethernet	Connector	4* RJ45 LAN port
Audio	Audio Interface	1xAudio line out
Watchdog Timer	Yes
IO	USB3.0/2.0	4USB3.0+2USB2.0
	GPIO	1* 14 bit GPIO (7in/7out)
	COM	6x DB RS-232/422/485 port, 6*Terminal block
Power	Power Type	DC
	Input Voltage	9-36V
	Power Adaptor	AC to DC, DC12V/5A,
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Anti-vibration	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Anti-shock	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Mechanical	Mounting	Desktop / wall mounting
	Dimension (mm)	248x150x83mm
	Construction	Aluminum housing
OS		Windows 10 /Windows 11/ Ubuntu，CentOS

Founded in 2016, Vstrong Technology Co.,Ltd is headquartered in Shenzhen, China. Our team of experienced and trusted experts is dedicated to continuously providing industrial computer systems including Industrial Motherboard, Industrial Panel PC, Fanless Box PC, Industrial Monitor, Rugged Tablets, etc. Meanwhile we provide flexible customization tailored to various applications.

From industrial automation, warehouse and logistics, smart traffic, construction, manufacturing, retail and other industries that require durability and ease of use, you will find our products and services working hard for clients who expect only the best. We always listen to customer needs and act on them.You can reply on Vstrong Technology to deliver and work with.

Main Advantages:

Robust and Reliable Products: Our industrial PCs are built to last in demanding environments. You can rely on them for uninterrupted performance, ensuring your operations run smoothly without costly downtime.

Flexible Customization: Tailored solutions to fit your exact needs. With flexible customization options, you get the precise hardware and features required for your unique applications, maximizing efficiency.

Cost-Effective Solutions: We offer budget-friendly solutions without compromising on quality. Our cost-effective industrial PCs deliver exceptional value, helping you save on upfront costs and long-term operational expenses.

Quality Assurance: Our commitment to quality is unwavering. We adhere to stringent quality control processes to guarantee that every industrial PC we provide meets the highest industry standards, ensuring your investment is worthwhile.

Longevity and Lifecycle Support: We understand the importance of long-term reliability. Our industrial PCs come with extended product lifecycles and comprehensive support, safeguarding your investment and minimizing disruptions over the years.

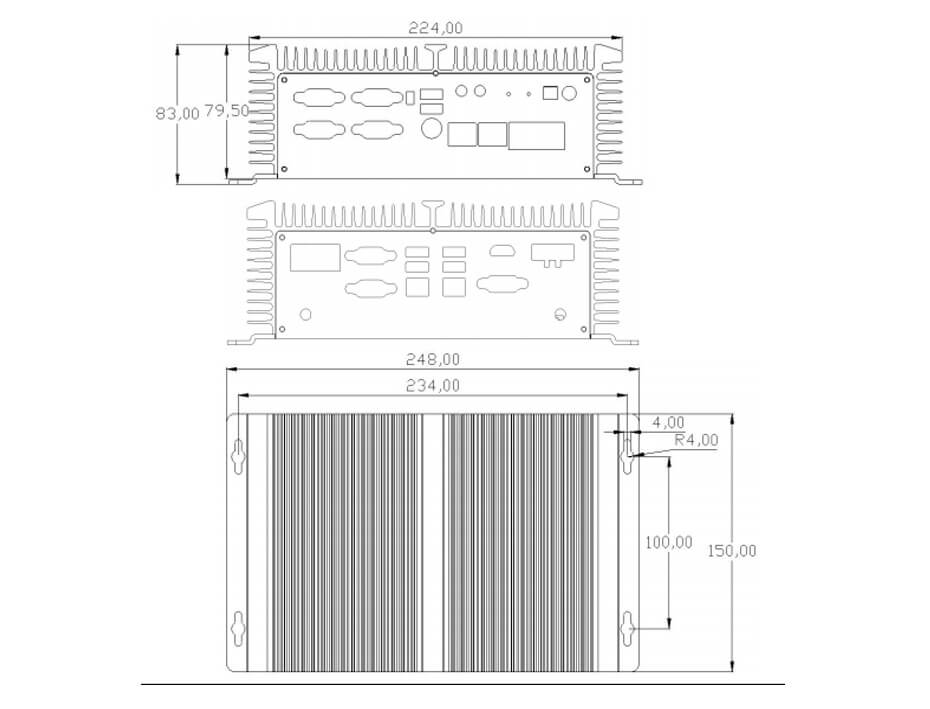

IBC2 drawing-2.jpg
