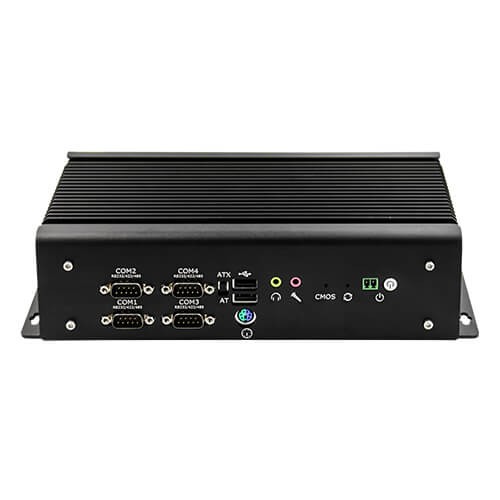

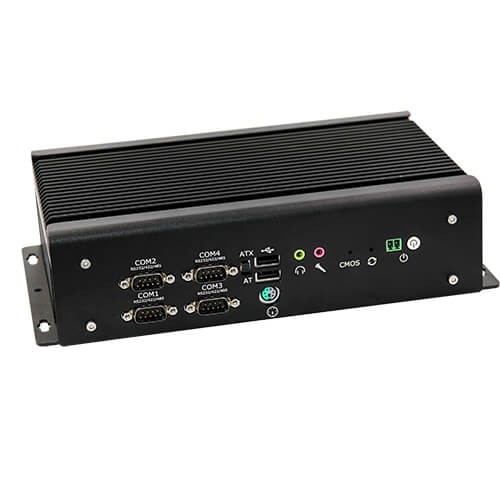

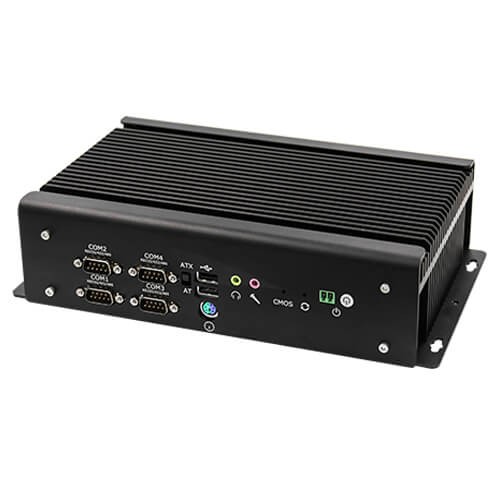

Mini PC 10th Core i5 i7 6USB 6COM GPIO

7/8/10/11th Gen Core i5 i7 CPU
SO-DIMM*2, up to 32GB
6USB+6COM+2LAN+14*GPIO
9-36V wide power DC

Key Features：

1. Optional CPU 7/8/10/11th U Intel® Core i5/i7;

2. Memory:SO-DIMM*2, up to 32GB

3. 6*DB9-4 support RS485/422,

4. 2*Ethernet LAN port in RJ45 6*USB, 14*bit GPIO,

5. Fanless / Compact design

6. 9-36V Wide Power

Specification VST-IBC6
CPU	CPU/Socket	lntel CPU 7/ 8/10/11th Gen Core i5 /i7
Memory	Technology	DDR4 SODIMM x2 up to 32GB
Memory	Max. Capacity	32GB
Storage	SATA	1 x MSATA 1 x M.2 2280 NVME 1 x HDD/SSD
Expansion slot	MiniPCIe	Mini PCIE Full size optional for 3G/4G/5G with SIM slot on board Mini PCIe Half-size optional for WiFi & BT
Expansion slot	Expansion IO	Optional expanding LPC, USB, PCIE
Ethernet	Controller	Intel® i211/ i210
Ethernet	Connector	2* RJ45 LAN port
Audio	Audio Interface	1x earphone , 1* Mic
Watchdog Timer	Yes
IO	USB3.0/2.0	4USB3.0+2USB2.0
	LAN	2x RJ45 Port, Ethernet LAN
	COM	6x DB wherein 4* support RS-232/422/485
	Display	1xHDMI, 1xVGA
	PS/2	1xPS/2
	GPIO	14 bit GPIO, 7in 7 out
	Switch	AT/ATX slide switch
	Buttons	1 x Power Button,1 x Reset Button,1 x Clear CMOS Button
Power	Power Type	DC
	Input Voltage	9-36V
	Power Adaptor	AC to DC, DC12V/5A,
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Anti-vibration	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Anti-shock	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Mechanical	Mounting	Desktop / wall mounting

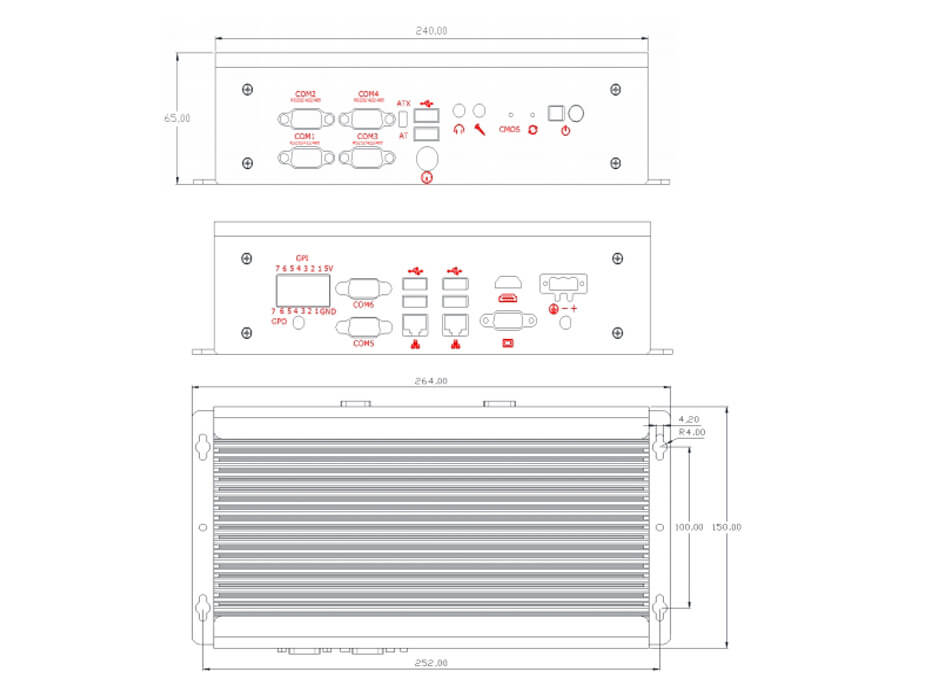

	Dimension (mm)	240x150x65mm
	Construction	Aluminum housing
OS		Windows 10 /Windows 11/ Ubuntu，CentOS
