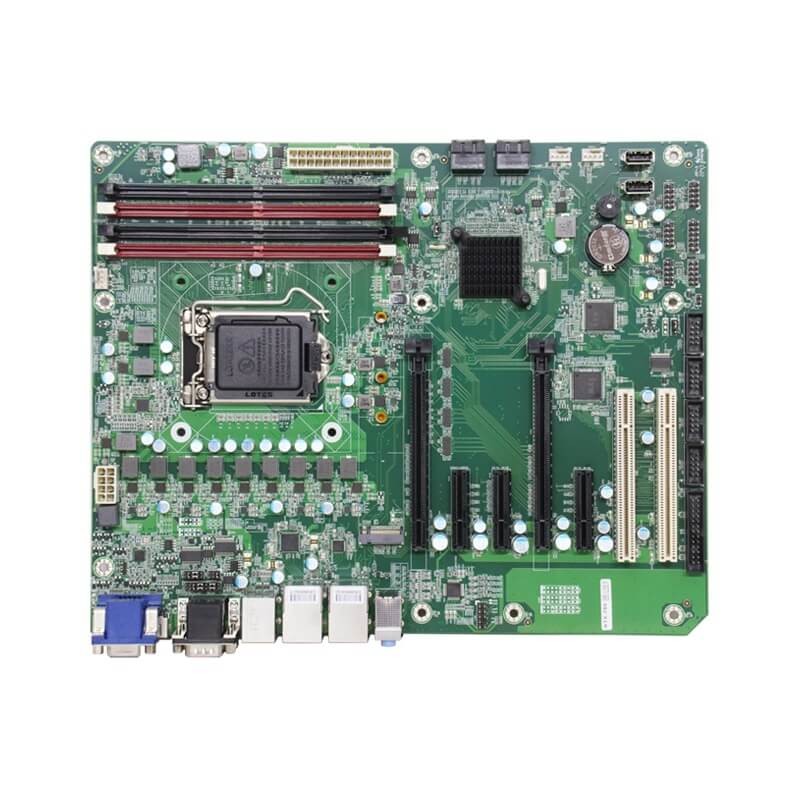

BI10-Q470

EMAIL
Dimension (mm)
305*245mm,ATX
CPUCPU/SocketSupport 10/11th Gen Intel Core i9/i7/i5/i3/Celeron/Pentium LGA1200 Processor
ChipsetIntel Q470 Chipset
BIOS64Mb SPI FLASH
MemoryTechnologyDDR4 2400/2666/2933MHz
Max. Capacity128 GB
Socket4 x U-DIMM
DisplayVGA1 x VGA, Up to 1920x1080@60Hz
HDMI1 x HDMI, Up to 4096x2160@60Hz
DP1 x DP, Up to 4096x2304@60Hz
StorageSATA4 x STATIII, support RAID0/1/5/10, 1 x M2 (PCIe X4 M-key 2280)
Expansion slotPCIe2 x PCI-E 16X(Single card is x16 signal and double card both is auto X8 signal)
4 x PCIE 4X
1 x PCI
MiniPCIeN/A
EthernetController

1 x Intel I219 Ethernet Connection

1 x Intel I211 Ethernet Connection

Speed10/100/1000 Mbps
ConnectorRJ45
AudioAudio InterfaceF_Audio header
ConnectorLine-out,Line-in,Mic-in
CODECRealtek ALC892/662 High Definition Audio
IO PortUSB3.0/2.06 x USB3.2, 8 x USB2.0
LAN2 x LAN
Display Port1 x HDMI, 1 x VGA. 1 x DP
AudioLine-out&Line-in&Mic-in
PS/21 x PS/2
COM Port2 x RS232
HeaderPanel1 x F_Panel header
Audio1 x 9 Pin Header
USB3.0/2.08 x USB2.0 Header
COM Port4 x RS232 Header
GPIO1 x 8bit header with 4in/4out
LPT1 x LPT Header
PowerPower TypeATX 24pin
EnvironmentOperational Temperature0 ~ 60°C
Storage Temperature  -20 ~ 75° C
Relative Humidity95% @ 40° C (non-condensing)
Operating SystemWindowsWindows 10, Windows 11
LinuxUbuntu,CentOS
