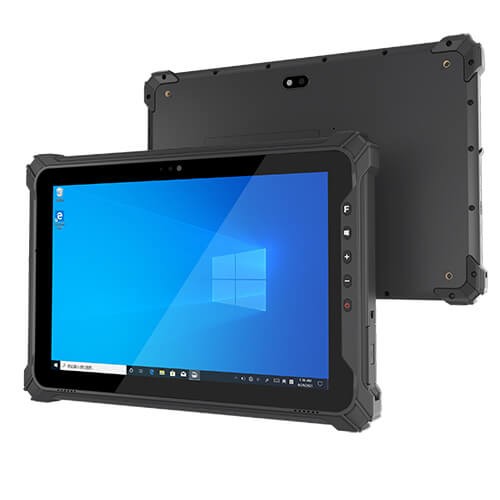

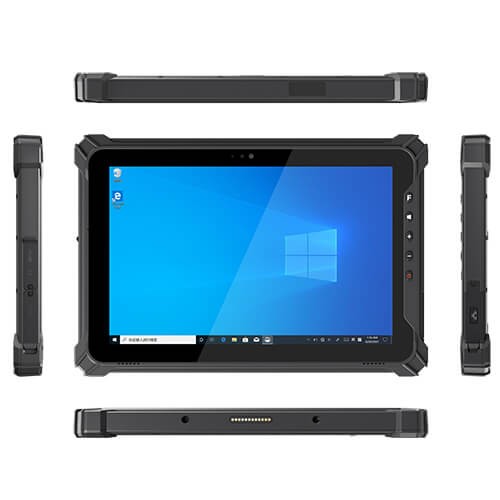

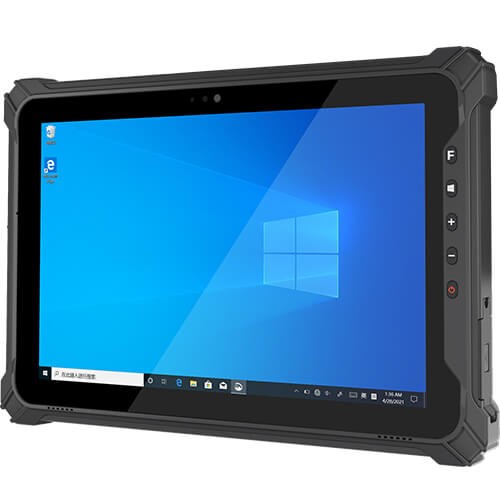

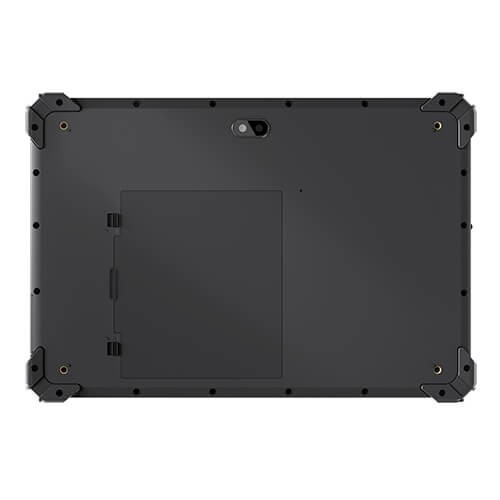

10.1 inch Rugged Tablet CPU N5105 Win 10 pro

10.1 inch Rugged Tablet CPU N5105 Win 10 pro

10.1 inch display
Windows 10 Pro
IP67
Optional 2D scanner NFC reader

TI10-17J is a multi-functional multi-scenario applications in one, and both super cost-effective ruggedized industrial flat panel, its equipped with a maximum frequency of 2.9GHz Intel JASPERLAKE processor, performance comparable to Core® i3 processor, can be smooth and stable operation of intelligent factory required information management, R & D design, production control and other industrial software, multiple I/O ports ( RJ45 Gigabit Ethernet port, RS232 serial port, USB3.0 Type-A interface, USBType-C interface, MiniHDMI video interface, etc.) can provide extremely high connectivity with factory equipment.

Main Features：

1. CPU Intel® JASPER LAKE N5105 , 4M Cache, 3.3 GHz

2. Memory: 4GB/8GB, Storage 64GB/128GB

3. Front / Rear Camera: 2.0MP/8.0MP

4. Full IP67

5. Bulit-in: WIFI &BT, 4G LTE, GPS

6. Battery 8500mAh

TI10-17J Specification
LCD Display	Resolution	1200*1920,10.1 inch IPS LCD,16:10 vertical screen
	Brightness	330cd/㎡
	SLR Film	Optional
Touch Panel	Cover Glass	Corning Gorilla III glass, hardness 7H
	Touch	10 points Capacitive，G+G Rigidity: above 7H-Anti-scratch
	Stylus	active/passive capactive pen optional
	Others	Wet touch/Glove touch optional
Battery	Capacity	7.4V/5000mAh
	Type	Lithium-ion polymer battery , pluggable, Hot Swap
	Endurance	5hrs(default 50% volumn，default200nit，play 1080P HD video)
Camera	Front/ Rear Pixel	2.0MP/8.0MP
Camera	Flash	Support
LED	LED status	1: start power on red light, power on into the S0 state red light off 2: power below 20% red light blinking, plug the adapter charging red light blinking, charging to 100% red light is always on 3: Standby state light off
Key	Key	Scanner key x1，No barcode then customizable ((GPIO) Volume adjustment key(+) x 1 Volume adjustment key(-) x 1 windows key x1 power key x1
Processor	CPU	Intel JASPER LAKE N5105
OS	OS	Windows 10 / Windows 11
Memory	RAM	8GB
Storage	ROM	128GB
Network	WIFI	WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI
	BT	Bluetooth 4.2 (BLE) class1 Transmission distance: 10m
	GPS	U-blox M8Q ,Support:GPS, Beidou module, glonass
	4G LTE	MeiG 750 LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan
Audio	Speaker	Embedded 8Ω/0.8W waterproof speaker x 1
MIC	MIC	Sensitivity:-42db, Output resistance:2.2kΩ
Sensors	Gravity Sensor	Gravity acceleration sensor
IO		USB3.0 x1 x1 Type C (USB3.0/HDMI/Charging) ∮3.5mm Standard Earphone Jack x1 HDMI 1.4a mini x1 TF Card slot SIM card slot
Optional		1D/2D Scanner NFC Reader UHF RFID
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Reliability	1.2m wood flooring, free fall of falling machine
