12.1" IP67 panel PC Stainless Steel CPUJ1900 7/8/10/11th CPU

Size:12.1 inch 1024*768
CPU: J1900 7/8/10/11th Core i3 i5 i7
3 USB+2 COM+2 GbE LAN
Wide power Range: 9-36V DC

Features：

Optional Screen size: 8-23.8 inches

Optional CPU Celeron J1900/J4125/J6412, 7/8/10/11th U Intel® Core i3 /i5/i7

Resistive Touch panel, Optional Capacitive touch screen

2-4*USB+2*LAN RJ45+2*COM

Full panel PC IP65/IP67

9-36V Wide Power

Windows 7/ 8/10 /11, Linux OS optional

Specification
LCD Display	Display Type	12.1" TFT-LCD
	Viewing Angle (H/V°)	85 (left), 85 (right), 85 (up), 85 (down)
	Resolution	1024*768
	Luminance (cd/m2)	400 (High brightness optional, 1000nits)
	Backlight Life MTBF (hrs))	30,000 hrs (Min.)
Touchscreen	Touch Type	5-wire Resisitve touch screen (Capacitive touch optional)
	Light Transmission	85%
	Life Time	10 Million Activations
CPU	CPU/Socket	lntel Celeron J1900 CPU 7/8th Gen Core i5 /i7
Memory	Technology	SODIMMx2
Memory	Max. Capacity	J1900 up to 8 GB/ Core i3 i5 i7 up to 16GB
Storage	SATA	1 x SATA 2.5" HDD Bay 1*mSATA
Expansion slot	MiniPCIe	1*Mini PCIe full size for SIM card 3G/4G Half size for WIFI & BT
Ethernet	Controller	Intel® i225
Ethernet	Connector	1-2* RJ45 LAN port Aviation connector
Watchdog Timer	Yes
IO	USB3.0/2.0	2-4* USB Aviation Connector, optional expansion in extend cable
IO	COM	2x RS-232/422/485 port
Power	Power Type	DC
	Input Voltage	9-36V
	Power Adaptor	Available
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Anti-vibration	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Anti-shock	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Mechanical	Mounting	Panel Mounting/ 75mm VESA mounting
	Dimension (mm)	31524565mm
	Construction	Stainless Steel SUS304
OS		Windows 7/8/10, Ubuntu，CentOS

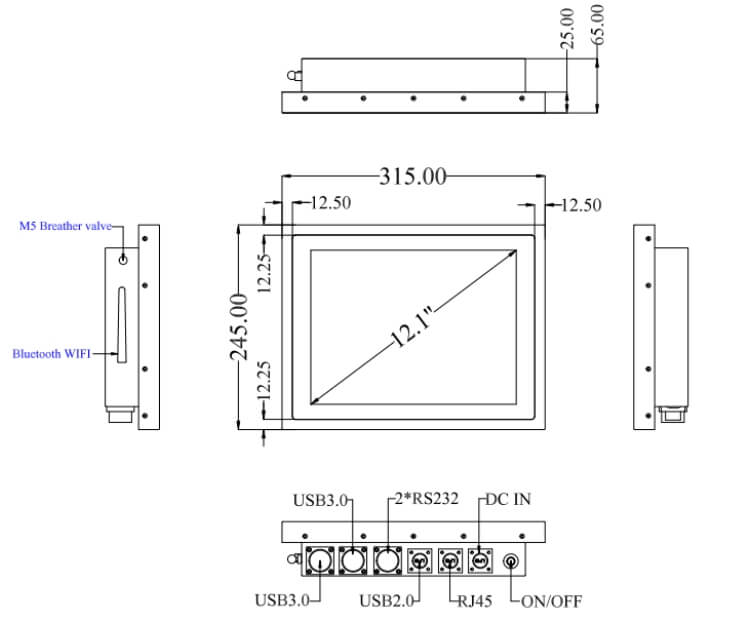

12 Inch drawing.jpg a
