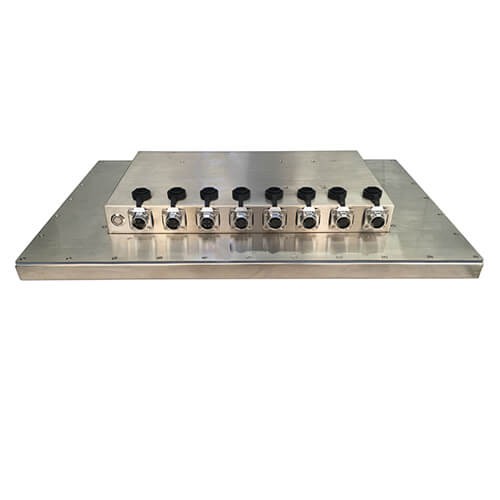

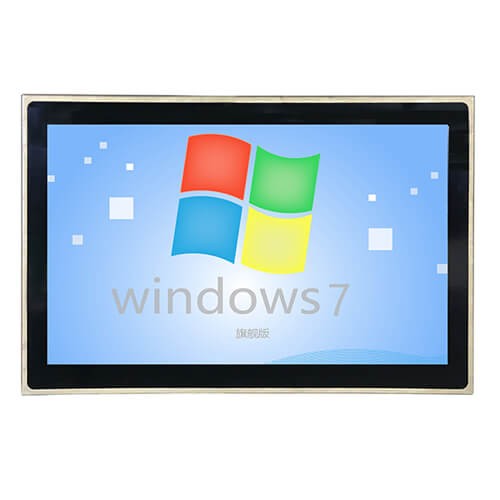

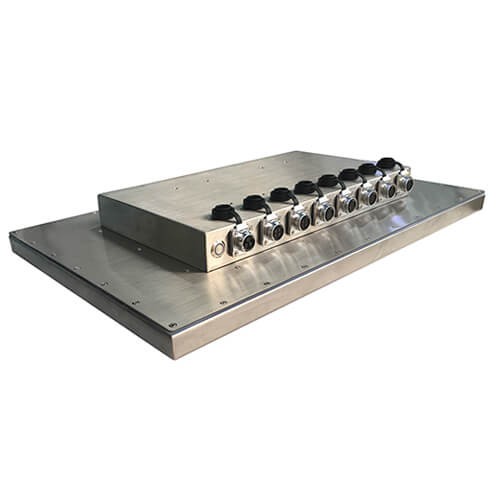

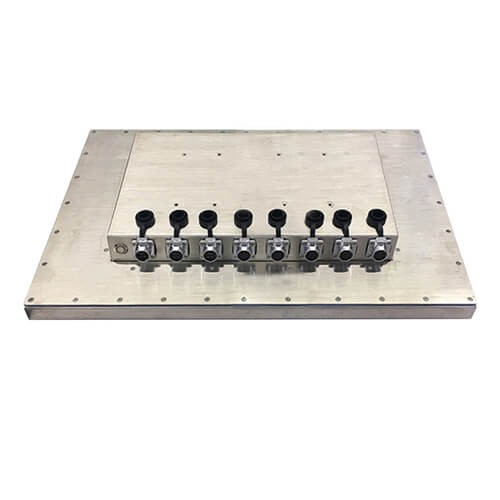

23.8" IP67 panel PC optional J1900 7/8/10/11th CPU

Size:23.8 inch 1920*1080
CPU: J1900 7/8/10/11th Core i3 i5 i7
3 USB+2 COM+2 GbE LAN
Wide power Range: 9-36V DC

EMAIL

Key Features:

Optional Screen size:  8-23.8 inches

Optional CPU  Celeron J1900/J4125/J6412, 7/8/10/11th U Intel®  Core i3 /i5/i7

Resistive Touch panel, Optional Capacitive touch screen

2-4*USB+2*LAN RJ45+2*COM

Full panel PC IP65/IP67

9-36V Wide Power

Windows 7/ 8/10 /11, Linux OS optional


Specification

LCD Display

Display Type

23.8" TFT-LCD

Viewing Angle (H/V°)

85 (left), 85 (right), 85 (up), 85 (down)

Resolution

1920*1080
Luminance (cd/m2)250 (High brightness optional, 800nits)
Backlight Life MTBF (hrs))30,000 hrs (Min.)
TouchscreenTouch Type5-wire Resisitve touch screen (Capacitive touch optional)
Light Transmission85%
Life Time10 Million Activations
CPUCPU/Socketlntel Celeron J1900 CPU 7/8th Gen Core i5 /i7
MemoryTechnologySODIMMx2
Max. CapacityJ1900 up to 8 GB/  Core i3 i5 i7 up to 16GB
StorageSATA

1 x SATA  2.5" HDD Bay

1*mSATA

Expansion slotMiniPCIe

1*Mini PCIe full size for SIM card 3G/4G Half size for WIFI & BT

EthernetControllerIntel® i225
Connector1-2* RJ45 LAN port  Aviation connector
Watchdog TimerYes
IOUSB3.0/2.02-4* USB Aviation Connector, optional expansion in extend cable
COM2x RS-232/422/485 port
PowerPower TypeDC
Input Voltage9-36V

Power Adaptor

Available

Environment

Operation Temp.With air flow -10 ~ 60° C
Storage Temp. -20 ~ 70° C
Relative Humidity95% @ 40° C (non-condensing)
Anti-vibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Anti-shockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
MechanicalMountingPanel Mounting/ 75mm VESA mounting
Dimension (mm)

620*390*65mm

ConstructionStainless Steel SUS304
OS
Windows 7/8/10,  Ubuntu,CentOS



Founded in 2016, Vstrong Technology Co.,Ltd is headquartered in Shenzhen, China. Our team of experienced and trusted experts is dedicated to continuously providing industrial computer systems including Industrial Motherboard, Industrial Panel PC, Fanless Box PC, Industrial Monitor, Rugged Tablets, etc. Meanwhile we provide flexible customization tailored to various applications.

From industrial automation, warehouse and logistics, smart traffic, construction, manufacturing, retail and other industries that require durability and ease of use, you will find our products and services working hard for clients who expect only the best. We always listen to customer needs and act on them.You can reply on Vstrong Technology to deliver and work with.

Main Advantages:

Robust and Reliable Products: Our industrial PCs are built to last in demanding environments. You can rely on them for uninterrupted performance, ensuring your operations run smoothly without costly downtime.

Flexible Customization: Tailored solutions to fit your exact needs. With flexible customization options, you get the precise hardware and features required for your unique applications, maximizing efficiency.

Cost-Effective Solutions: We offer budget-friendly solutions without compromising on quality. Our cost-effective industrial PCs deliver exceptional value, helping you save on upfront costs and long-term operational expenses.

Quality Assurance: Our commitment to quality is unwavering. We adhere to stringent quality control processes to guarantee that every industrial PC we provide meets the highest industry standards, ensuring your investment is worthwhile.

Longevity and Lifecycle Support: We understand the importance of long-term reliability. Our industrial PCs come with extended product lifecycles and comprehensive support, safeguarding your investment and minimizing disruptions over the years.
