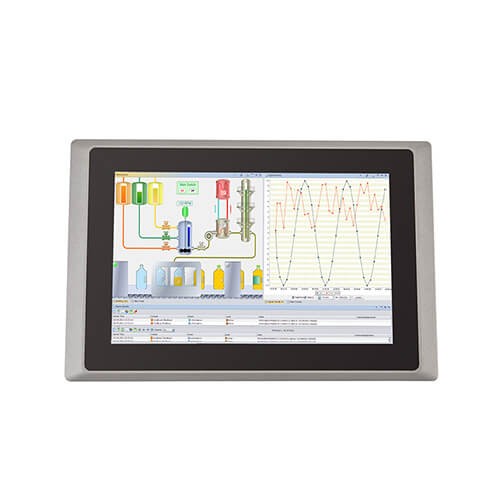

Size:10.1 inch 1280*800
CPU: J4125/J6412/ 10/11th Core i5 i7

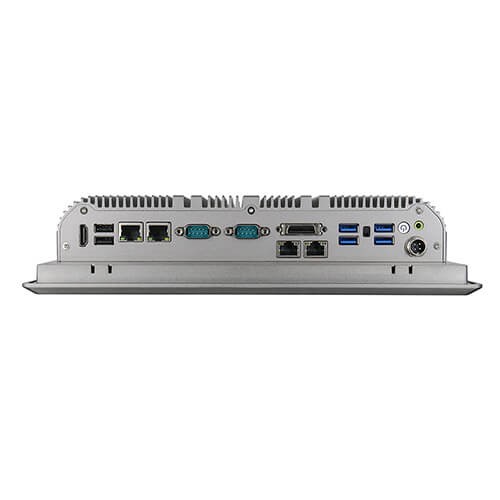

6*USB+2*COM+2-4* RJ45 LAN
Wide power Range: 9-36V DC
Features：
1. Optional CPU Celeron J4125/ J6412, 8/10/11th U Intel® Core i5/i7;
2. Memory: J4125/J6412 SO-DIMM*1, Core i5/i7 SO-DIMM*2, up to 16GB
3. 6*USB+2- 4*LAN RJ45+2*COM, optional 10*bit GPIO +4*COM
4. Front Panel IP65
5. Vesa Mounting/ Embedded Mounting;
6. 9-36V Wide Power
Specification | ||
LCD Display | Display Type | 10.1" TFT-LCD |
Viewing Angle (H/V°) | 85 (left), 85 (right), 85 (up), 85 (down) | |
Resolution | 1280*800 | |
| Luminance (cd/m2) | 400 | |
| Backlight Life MTBF (hrs)) | 30,000 hrs (Min.) | |
| Touchscreen | Touch Type | 5-wire Resisitve touch screen (Capacitive touch optional) |
| Light Transmission | 85% | |
| Life Time | 10 Million Activations | |
| CPU | CPU/Socket | lntel Celeron J4125/J6412 CPU / 8/10/11th Gen Core i5 /i7 |
| Memory | Technology | J4125/J6412: DDR4 SODIMM x1 / Core i5/i7 SODIMMx2 |
| Max. Capacity | J4125/J6412: up to 8GB/ Core i5/i7: up to 16GB | |
| Storage | SATA | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Expansion slot | MiniPCIe | M.2 3042/3052 optional for 3G/4G/5G with SIM slot on board M.2 2230 WiFi & BT |
| 2 more Ethernet LAN optional for expansion | ||
| Ethernet | Controller | Intel® i225V |
| Connector | 2* RJ45 LAN port (Optional 4* LAN port) | |
| Audio | Audio Interface | 1xAudio line out |
| Watchdog Timer | Yes | |
| IO | USB3.0/2.0 | 4*USB2.0+2*USB3.0 (J4125/J6412) / 4*USB3.0+2*USB2.0 i5/i7 |
| GPIO | 1* 10 bit GPIO Within the expansion Port | |
| COM | 2x DB RS-232/422/485 port, 4*RS232 in expansion port | |
| Power | Power Type | DC |
| Input Voltage | 9-36V | |
Power Adaptor | AC to DC, DC12V/5A, | |
Environment | Operation Temp. | With air flow -10 ~ 60° C |
| Storage Temp. | -20 ~ 70° C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| Anti-vibration | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Anti-shock | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Mechanical | Mounting | Panel Mounting/ 75mm VESA mounting |

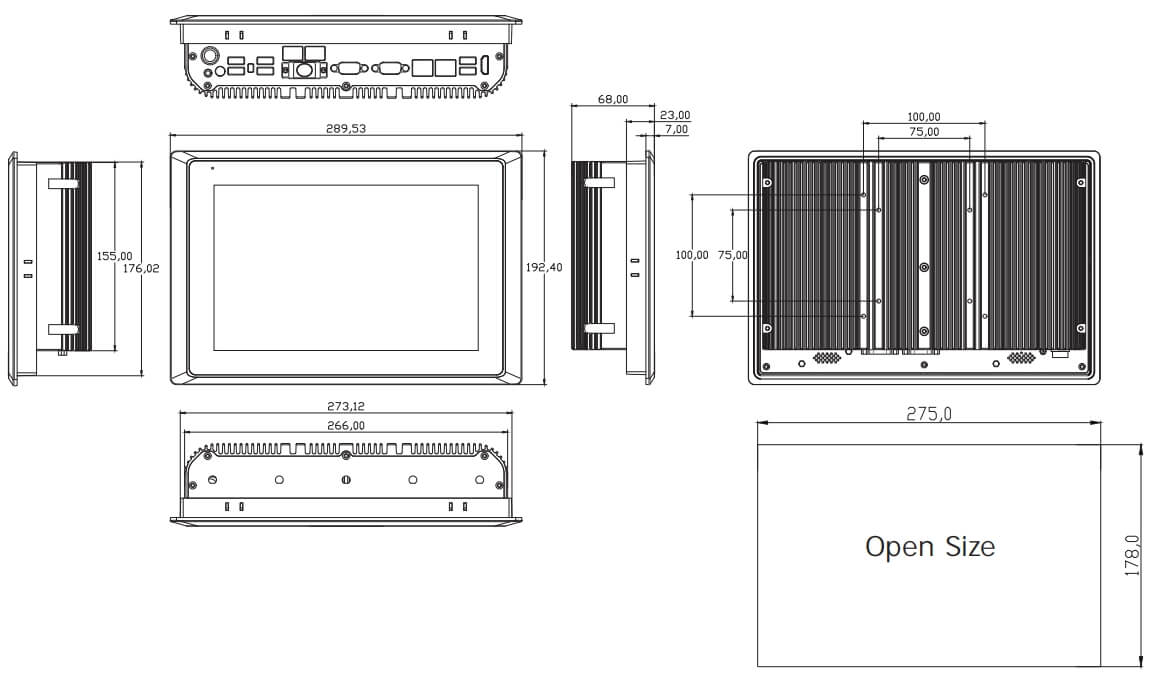

| Dimension (mm) | 289.53x192.40x68.0 mm | |

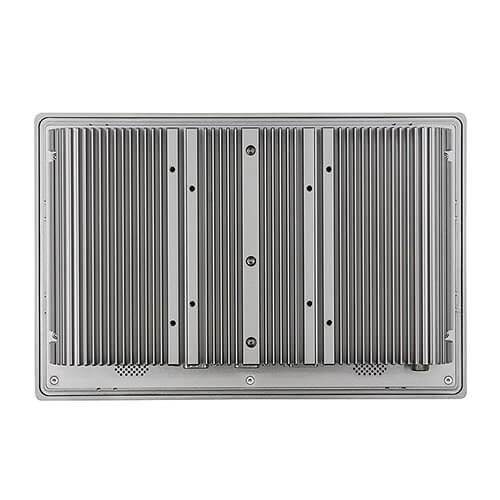

| Construction | Aluminum housing | |
| OS | Windows 10 /Windows 11/ Ubuntu，CentOS | |
