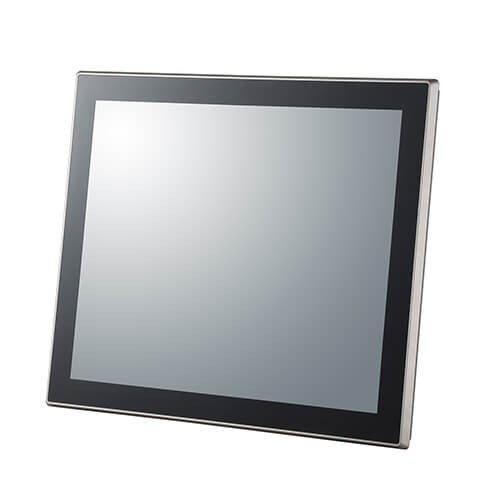

17" Industrial Panel PC J4125 J6412/ Core i5 i7

Size:17 inch 1280*1024
CPU: J4125/J6412/ 10/11th Core i5 i7
6 USB+2 COM+2-4 GbE LAN
Wide power Range: 9-36V DC

EMAIL

Key Features:

Available in Screen size:  7-21.5 inches

Optional CPU  Celeron J4125/ J6412, 8/10/11th U Intel®  Core i5/i7

Resistive Touch panel, Optional Capacitive touch screen

6*USB+2- 4*LAN RJ45+2*COM, optional 10*bit GPIO +4*COM

Front Panel IP65

Windows 11 Capabilities

9-36V Wide Power


Specification

LCD Display

Display Type

17" TFT-LCD

Viewing Angle (H/V°)

85 (left), 85 (right), 85 (up), 85 (down)

Resolution

1280*1024
Luminance (cd/m2)250
Backlight Life MTBF (hrs))30,000 hrs (Min.)
TouchscreenTouch Type5-wire Resisitve touch screen (Capacitive touch optional)
Light Transmission85%
Life Time10 Million Activations
CPUCPU/Socketlntel Celeron J4125/J6412 CPU / 8/10/11th Gen Core i5 /i7
MemoryTechnologyJ4125/J6412: DDR4 SODIMM x1 /  Core i5/i7 SODIMMx2
Max. CapacityJ4125/J6412: up to 8GB/ Core i5/i7: up to 16GB
StorageSATA

1 x M.2 2242/2260/2280 SATA

1 x SATA(2.5'' SATA )

1 x M.2 2280 NVME

Expansion slotMiniPCIe

M.2 3042/3052 optional for  3G/4G/5G with SIM slot on board

M.2 2230 WiFi & BT


2 more Ethernet LAN optional for expansion
EthernetControllerIntel® i225V
Connector2* RJ45 LAN port (Optional 4* LAN port)
AudioAudio Interface1xAudio line out
Watchdog TimerYes

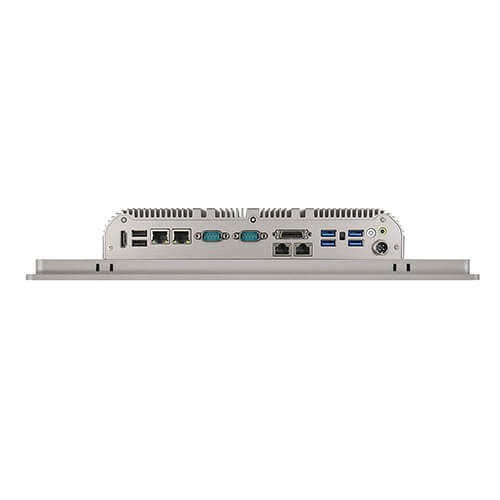

IOUSB3.0/2.04*USB2.0+2*USB3.0 (J4125/J6412) / 4*USB3.0+2*USB2.0 i5/i7
GPIO1* 10 bit GPIO Within the expansion Port
COM2x DB RS-232/422/485 port, 4*RS232 in expansion port
PowerPower TypeDC
Input Voltage9-36V

Power Adaptor

AC to DC, DC12V/5A,

Environment

Operation Temp.With air flow -10 ~ 60° C
Storage Temp. -20 ~ 70° C
Relative Humidity95% @ 40° C (non-condensing)
Anti-vibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Anti-shockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
MechanicalMountingPanel Mounting/ 75mm /100mm  VESA mounting
Dimension (mm)400.66x329.76x68.10 mm
ConstructionAluminum housing
OS

Windows 10 /Windows 11/ Ubuntu,CentOS

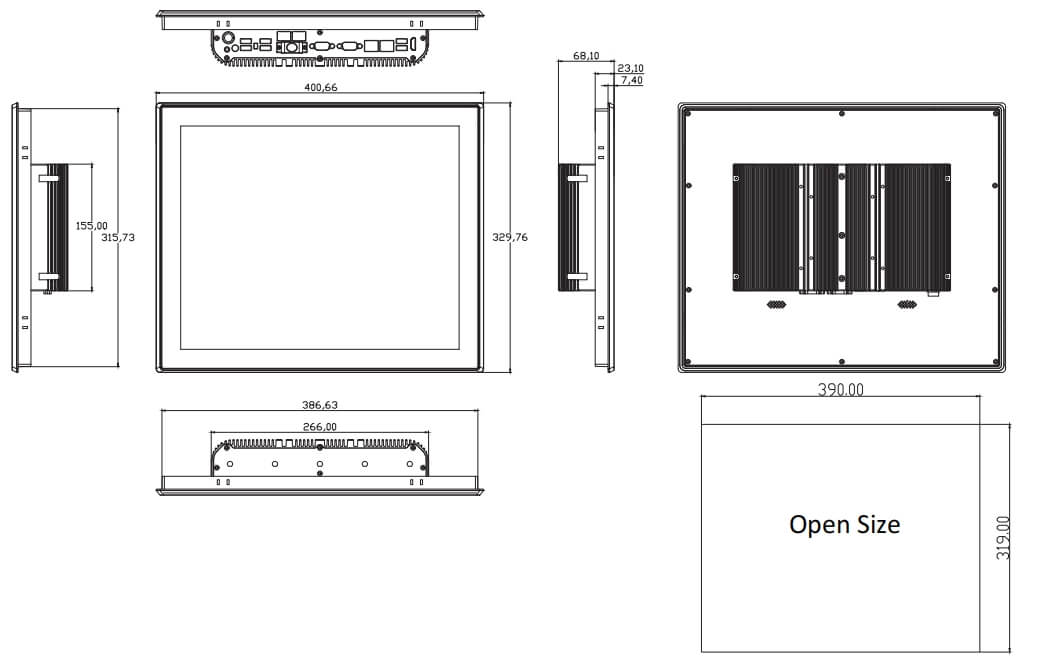

17 inch panel pc drawing.jpg9.jpg
