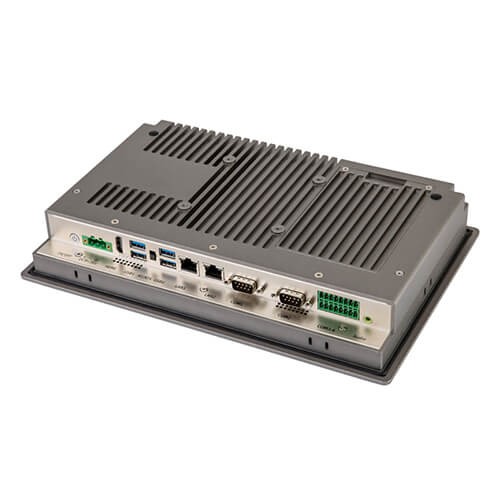

10.1" industrial panel PC J1900 7/8th Gen CPU

Size:10.1 inch 1280*800
CPU: J1900 7/8th Core i5 i7
6 USB+6 COM+2 GbE LAN
Wide power Range: 9-36V DC

Key Features：

Optional Screen size: 7-21.5 inches

Optional CPU Celeron J1900, 7/8th U Intel® Core i5/i7

Resistive Touch panel, Optional Capacitive touch screen

6*USB+2*LAN RJ45+2*COM, optional 14*bit GPIO +4*COM

Quick release SSD +WIFI assembly

Front Panel IP65

9-36V Wide Power

Windows 7/ 8/10, Linux OS optional

Specification
LCD Display	Display Type	10.1" TFT-LCD
	Viewing Angle (H/V°)	85 (left), 85 (right), 85 (up), 85 (down)
	Resolution	1280*800
	Luminance (cd/m2)	400
	Backlight Life MTBF (hrs))	30,000 hrs (Min.)
Touchscreen	Touch Type	5-wire Resisitve touch screen (Capacitive touch optional)
	Light Transmission	85%
	Life Time	10 Million Activations
CPU	CPU/Socket	lntel Celeron J1900 CPU 7/8th Gen Core i5 /i7
Memory	Technology	J1900 4GB On board / Core i5/i7 SODIMMx2
Memory	Max. Capacity	J1900 up to 4GB/ Core i5/i7: up to 16GB
Storage	SATA	1 x SATA 2.5" HDD Bay 1mSATA 1M.2(not for J1900)
Expansion slot	MiniPCIe	1*Mini PCIe full size for SIM card 3G/4G Half size for WIFI & BT
Expansion slot		4COM / 8bit GPIO optional
Ethernet	Controller	Intel® i225
Ethernet	Connector	2* RJ45 LAN port
Audio	Audio Interface	1xAudio line out
Watchdog Timer	Yes
IO	USB3.0/2.0	1x USB 3.0, 3 x USB 2.0(4*USB 3.0 for Core CPU)
	GPIO	1*8 bit GPIO Within the Expansion terminal block
	COM	2x RS-232/422/485 port, 4*RS232 terminal block
Power	Power Type	DC
	Input Voltage	9-36V
	Power Adaptor	AC to DC, DC12V/5A,
Environment	Operation Temp.	With air flow -10 ~ 60° C
	Storage Temp.	-20 ~ 70° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Anti-vibration	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Anti-shock	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Mechanical	Mounting	Panel Mounting/ 75mm VESA mounting
	Dimension (mm)	289.53 x 192.44 x 48.3 mm
	Construction	Aluminum housing
OS		Windows 7/8/10, Ubuntu，CentOS

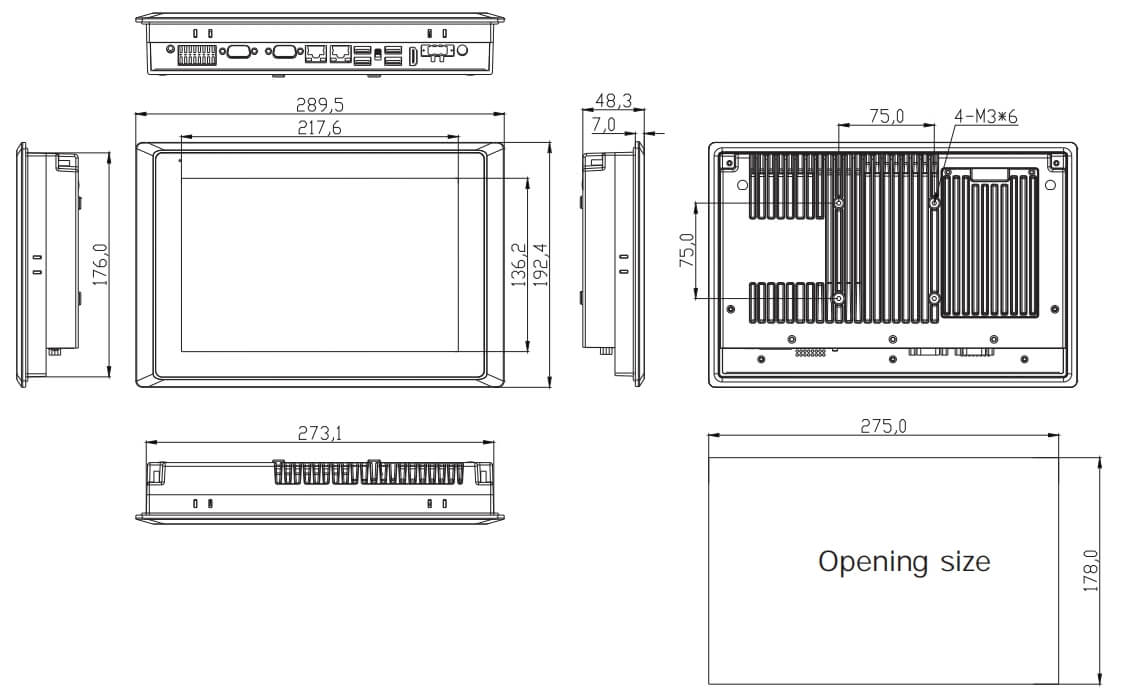

10.1 inch panel pc drawing.jpg
